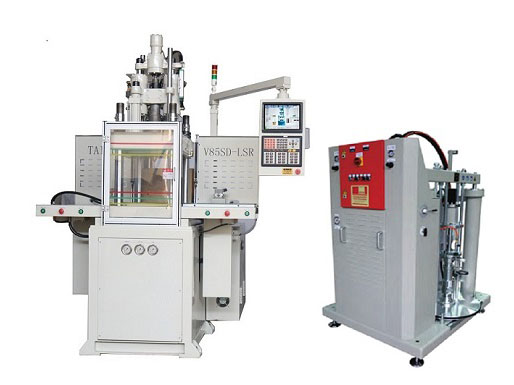

V85-SD立式硅胶注塑机

立式硅胶注塑机是一种专门用于生产硅橡胶制品的注塑机，它具有以下特点：

1. 立式无柱锁模：与传统的卧式注塑机不同，立式注塑机采用立式无柱锁模结构，这种设计可以提供更好的刚性和稳定性，同时也便于模具的安装和更换。

2. 卧式注射：虽然是立式结构，但注塑部分采用卧式设计，这样可以确保注射的准确性和稳定性，同时也便于操作。

3. 三面开模：立式注塑机通常采用三面开模的方式，这种设计可以使模具的开闭更加灵活，适合各种复杂的模具结构。

4. 注射压力大：立式注塑机通常配备大功率的注射系统，能够提供较大的注射压力，确保硅橡胶能够充分填充模具。

5. 扭矩液压马达控制：注射部分采用扭矩液压马达控制，这种方式可以实现更精确的注射量控制。

6. 螺旋扭力大：螺杆式注射结构，提供强大的螺旋扭力，有助于硅橡胶的充分塑化和均匀混合。

7. 预塑性高：立式注塑机的预塑系统设计先进，能够确保硅橡胶在注射前得到充分的塑化，从而提高产品的质量和稳定性。

8. 系统压力比例阀控制：注射系统的压力由比例阀控制，可以实现多段压力输出，确保注射过程的精确控制。

此外，立式硅胶注塑机还具有以下功能特点：

1. 滑板、底板采用球默铸铁：这种材料具有良好的耐磨性和稳定性，能够延长模具的使用寿命。

2. 立式四柱直压锁模：采用立式四柱直压锁模结构，锁模力均匀分布，提高模具的稳定性。

3. 中/英文电控，全屏显示：操作界面采用中/英文双语显示，方便国际用户操作，同时全屏显示可以提供更直观的操作界面。

4. 双比例压力、流量控制：注塑部分采用双比例压力和流量控制，可以实现更细腻的注射效果。

5. 机械结构优化处理：注塑机的机械结构经过优化处理，运作顺畅，速度快，提高生产效率。

6. 双模不滑板设计：部分立式注塑机采用双模不滑板设计，可以增加生产率，同时提高作业的安全性。

7. 多样化油路系统设计：根据不同客户的需求，立式注塑机可以设计不同的油路系统，如半闭、全闭、伺服或高速注塑等。

8. 顶针可依不同滑板搭配使用：顶针的行程和力度可以根据不同的模具设计进行调整，以适应不同的产品需求。

综上所述，立式硅胶注塑机以其独特的设计特点和功能特点，广泛应用于医疗用品、婴儿用品、电子零件等高要求的硅橡胶制品生产领域。

Vertical silicone injection molding machine is a kind of injection molding machine specially used for producing silicone rubber products, which has the following features:

1. Vertical column-free mold locking: different from the traditional horizontal injection molding machine, the vertical injection molding machine adopts vertical column-free mold locking structure, this design can provide better rigidity and stability, and it is also easy to install and replace the mold.

2. Horizontal injection: Although it is a vertical structure, the injection part adopts a horizontal design, which can ensure the accuracy and stability of injection, and also easy to operate.

3. Three-side mold opening: Vertical injection molding machine usually adopts three-side mold opening, this design can make the opening and closing of the mold more flexible, which is suitable for all kinds of complex mold structure.

4. High injection pressure: Vertical injection molding machines are usually equipped with high-power injection systems, which can provide high injection pressure to ensure that the silicone rubber can fully fill the mold.

5. Torque hydraulic motor control: The injection section is controlled by a torque hydraulic motor, which allows for more precise injection volume control.

6. High screw torque: The screw injection structure provides a strong screw torque, which helps the silicone rubber to be fully plasticized and evenly mixed.

7. High preplasticization: The advanced design of the preplasticization system of the vertical injection molding machine ensures that the silicone rubber is fully plasticized before injection, thus improving the quality and stability of the product.

8. Proportional valve control of system pressure: the pressure of the injection system is controlled by a proportional valve, which can realize multi-stage pressure output and ensure precise control of the injection process.

In addition, the vertical silicone injection molding machine has the following functional features:

1. Slide plate and base plate are made of ductile cast iron: this material has good wear resistance and stability, which can prolong the service life of the mold.

2. Vertical four-column direct-pressure mold locking: adopting vertical four-column direct-pressure mold locking structure, the clamping force is uniformly distributed to improve the stability of the mold.

3. Chinese/English electronic control, full-screen display: the operation interface adopts Chinese/English bilingual display, which is convenient for international users to operate, while the full-screen display can provide a more intuitive operation interface.

4. Dual-proportional pressure and flow control: the injection part adopts dual-proportional pressure and flow control, which can realize more delicate injection effect.

5. Optimized mechanical structure: The mechanical structure of the injection molding machine has been optimized for smooth operation and high speed, which improves the production efficiency.

6. Double-mold non-slip design: Some vertical injection molding machines adopt double-mold non-slip design, which can increase productivity and improve safety of operation at the same time.

7. Diversified oil system design: According to different customers' demands, vertical injection molding machines can be designed with different oil systems, such as semi-closed, fully closed, servo or high-speed injection.

8. Ejector pin can be used with different slide plates: the stroke and strength of the ejector pin can be adjusted according to different mold designs to meet different product requirements.

To sum up, vertical silicone injection molding machine is widely used in the production of medical supplies, baby products, electronic parts and other highly demanding silicone rubber products with its unique design features and functional characteristics.
