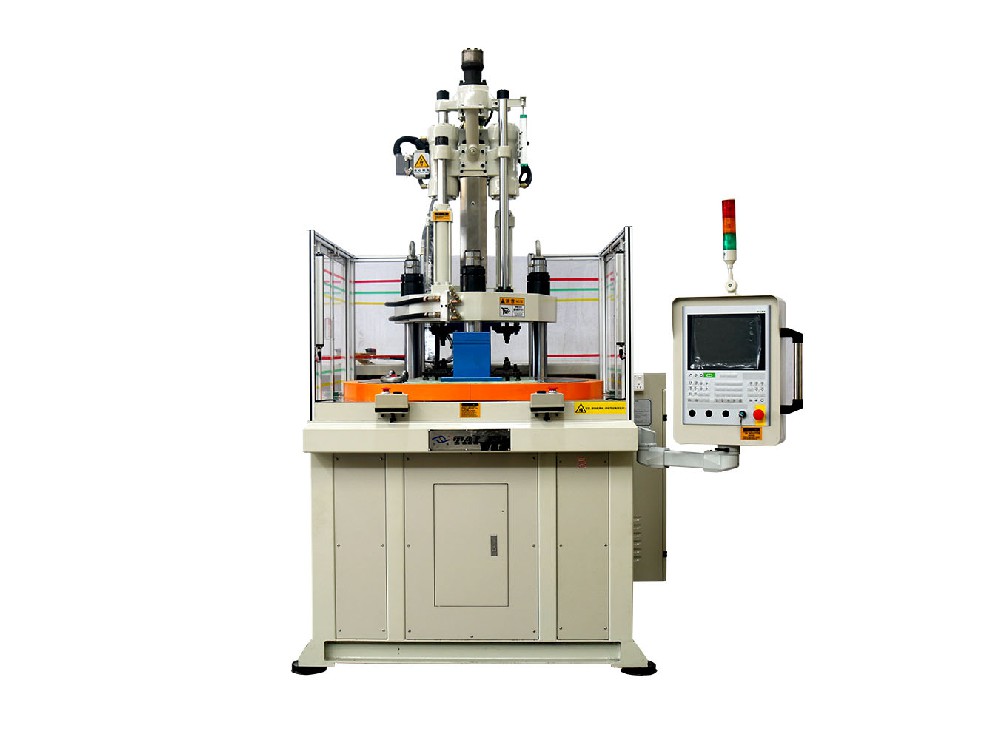

立式转盘注塑机

立式转盘注塑机是一种高效的塑料成型设备，具有以下特点：

1. 结构特点：

   - 注射装置和锁模装置处于同一垂直中心线上，模具沿上下方向开闭，占地面积约为卧式机的一半，生产效率约为卧式机的两倍。

2. 模具更换方便：

   - 模具的重量由水平模板支撑，上下开启和关闭，不会发生类似卧式机器的模具重力引起的前倒，使得模板无法关闭的现象。有利于持久性保持机械和模具的精度。

3. 易于实现自动化：

   - 通过简单的机械手可取出各个塑件型腔，有利于精密成型。一般锁模装置周围为开放式，容易配置各类自动化装置，适应于复杂、精巧产品的自动成型。

4. 嵌件成型简单：

   - 模具表面朝上，嵌件放入定位容易。采用下模板固定、上模板可动的机种，拉带输送装置与机械手相组合的话，可容易实现全自动嵌件成型。

5. 适应性强：

   - 拉带输送设备简单地安装在模具中间，便于成型和自动生产。容易保证模具中树脂的流动性和模具温度分布的一致性。

6. 成本效益：

   - 小批量试生产时，模具构造简单成本低，且便于卸装。经受了多次地震的考验，立式机由于重心低，相对卧式机抗震性更好。

此外，立式转盘注塑机还配备了旋转台面、移动台面及倾斜台面等形式，容易实现嵌件成型、模内组合成型，适合大射胶量生产，并通过多段压力输出实现精密准确的注射成型。

综上所述，立式转盘注塑机以其高效率、高精度和灵活性，在塑料成型领域占据重要地位，特别适合复杂、精密产品的自动化生产。

Vertical rotary table injection molding machine is a kind of efficient plastic molding equipment with the following features:

1. Structural features:

   - The injection device and clamping device are on the same vertical centerline, the molds are opened and closed along the up and down direction, the floor space is about half of the horizontal machine, and the production efficiency is about twice of the horizontal machine.

2. Easy mold replacement:

   - The weight of the mold is supported by the horizontal template, which opens and closes in the up and down direction, and the phenomenon that the template can not be closed due to the forward fall caused by the gravity of the mold similar to that of the horizontal machine will not occur. This helps to maintain the accuracy of the machine and mold in a durable manner.

3. Easy to realize automation:

   - Each plastic part cavity can be taken out by a simple manipulator, which is conducive to precision molding. General clamping device around the open, easy to configure all kinds of automation devices, adapted to complex, delicate products, automatic molding.

4. Simple insert molding:

   - The surface of the mold is facing upward, so it is easy to put the insert into the positioning. If the lower mold plate is fixed and the upper mold plate is movable, and if the belt conveyor is combined with the manipulator, fully automatic insert molding can be easily realized.

5. Strong adaptability:

   - The pull belt conveyor is simply installed in the middle of the mold for easy molding and automatic production. It is easy to ensure the flow of resin in the mold and the consistency of temperature distribution in the mold.

6. Cost-effective:

   - For small-lot trial production, the mold construction is simple and low cost, and easy to unload. Having been tested by many earthquakes, the vertical machine is more resistant to earthquakes compared to the horizontal machine due to its low center of gravity.

In addition, the vertical rotary table injection molding machine is equipped with rotary table, moving table and tilting table, which is easy to realize insert molding, in-mold combination molding, suitable for large injection volume production, and through the multi-stage pressure output to achieve precise and accurate injection molding.

To sum up, vertical rotary table injection molding machine occupies an important position in the field of plastic molding with its high efficiency, high precision and flexibility, which is especially suitable for the automated production of complex and precise products.
