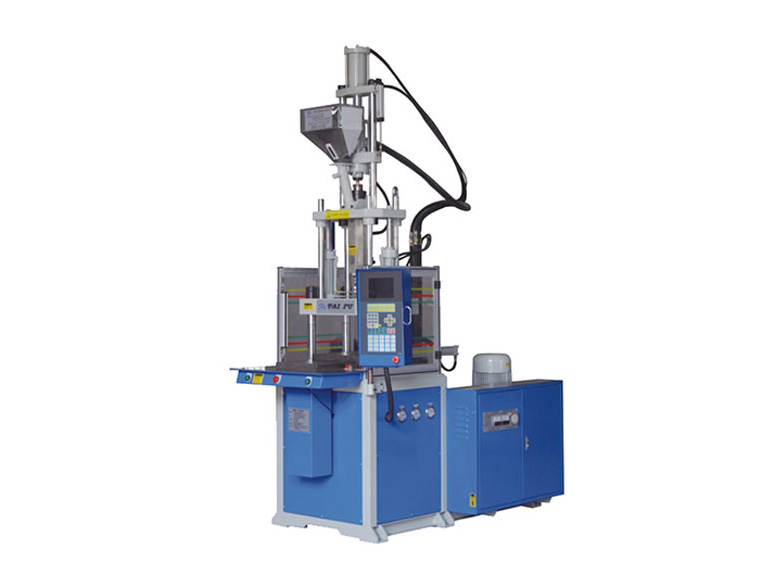

V55S-SP立式高速单滑板注塑机

立式高速单滑板注塑机是一种高效的塑料成型设备，具有以下特点：

1. 立式无柱锁模：与卧式注塑机相比，立式注塑机没有柱子，模具是沿上下方向开闭，占地面积较小，约为卧式机的一半左右，但生产性能约为卧式机的两倍。

2. 高速注射：立式高速单滑板注塑机能够在射胶时选择高速、高压进行注射，最大射速可达380mm/sec，适合薄壁产品的成型。

3. 高精度：该机型采用先进的微电脑控制，动力系统利用油压传动，塑胶在料管内经过电热圈加热及料管螺杆旋转产生剪切进行预塑熔融注射入型腔，经冷却，开模，顶出动作即得出产品，本机可进行手动，半自动及全自动生产。

4. 易于嵌件成型：由于模具表面朝上，嵌件放入定位容易，采用下模板固定、上模板可动的机种，拉带输送装置与机械手相组合的话，可容易实现全自动嵌件成型。

5. 模具保护：模具的重量由水平模板支撑作上下开闭动作，不会发生类似卧式机的由于模具重力引起的前倒，使得模板无法开闭的现象。有利于持久性保持机械和模具的精度。

6. 自动化生产：通过简单的机械手可取出各个塑件型腔，有利于精密成型，一般锁模装置周围为开放式，容易配置各类自动化装置，适应于复杂、精巧产品的自动成型。

7. 节能高效：立式注塑机采用高效的液压系统和先进的电气控制系统，能够实现能量的高效利用，减少浪费。

综上所述，立式高速单滑板注塑机具有高速度、高精度、高效率和高自动化的特点，适合生产各种精密塑料零件，尤其是薄壁和复杂的产品。

Vertical high speed single slide injection molding machine is a kind of high efficient plastic molding equipment with the following features:

1. Vertical column-free mold locking: Compared with horizontal injection molding machine, vertical injection molding machine has no column, the mold is opened and closed along the up and down direction, occupies a smaller area, about half of the horizontal machine, but the production performance is about twice as much as the horizontal machine.

2. High-speed injection: Vertical high-speed single-slide injection molding machine is able to select high-speed, high-pressure injection when injecting glue, the maximum injection speed of up to 380mm/sec, suitable for thin-walled products molding.

3. high precision: the model adopts advanced microcomputer control, power system using hydraulic transmission, plastic in the material tube through the electric heating ring heating and material tube screw rotation to produce shear pre-molding melt injection into the cavity, after cooling, mold opening, ejector action that is the result of the product, the machine can be manually, semi-automatic and fully automatic production.

4. Easy insert molding: Because the surface of the mold is facing up, it is easy to put the insert into the positioning, using the lower template fixed, the upper template can move the type of machine, the combination of the belt conveyor and the manipulator, it is easy to realize the full-automatic insert molding.

5. Mold protection: the weight of the mold is supported by the horizontal template for up and down opening and closing action, it will not happen similar to the horizontal machine due to the gravity of the mold caused by the front fall, making the template can not be opened and closed phenomenon. This helps to maintain the precision of the machine and the mold in a durable way.

6. automated production: through a simple manipulator can take out the cavity of each plastic part, which is conducive to precision molding, the general clamping device around the open, easy to configure all kinds of automation devices, adapted to complex, delicate products, automatic molding.

7. Energy saving and high efficiency: vertical injection molding machine adopts high efficiency hydraulic system and advanced electric control system, which can realize the efficient use of energy and reduce waste.

To sum up, the vertical high-speed single-slide injection molding machine is characterized by high speed, high precision, high efficiency and high automation, which is suitable for producing all kinds of precision plastic parts, especially thin-walled and complex products.
